Hello. Instead of hi-jacking other peoples threads I'll just make my own.

Originally I had planned on just buying T&C HID housings and just using them. But after buying the housings and bulbs I realized I couldn't use my aftermarket ballasts. I would need to buy D1S ballasts which would run north of $400. :nut:

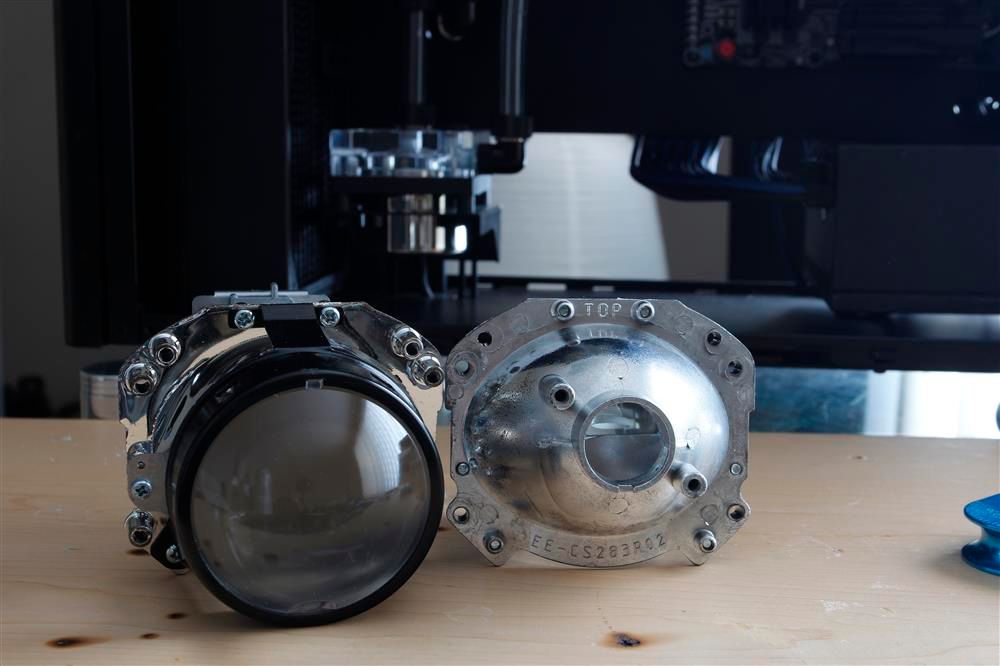

So I decided to buy a pair of Morimoto FX-R 3s and some Osram 62240 bulbs, which would go in the low beam sections. Then I had some Morimoto Mini H1s that I had bought for my previous vehicle but I never used.

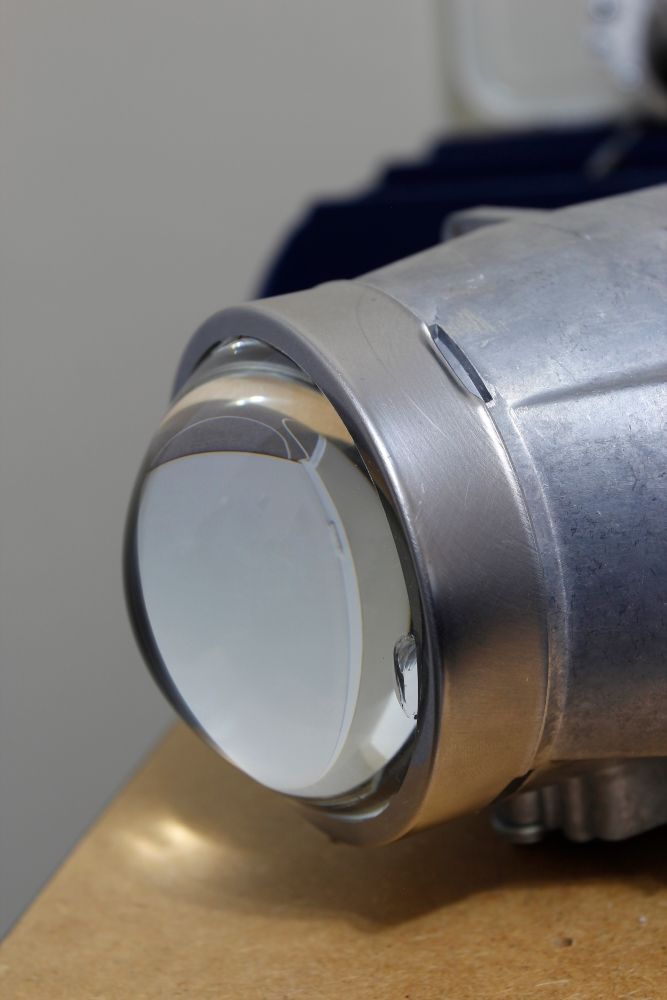

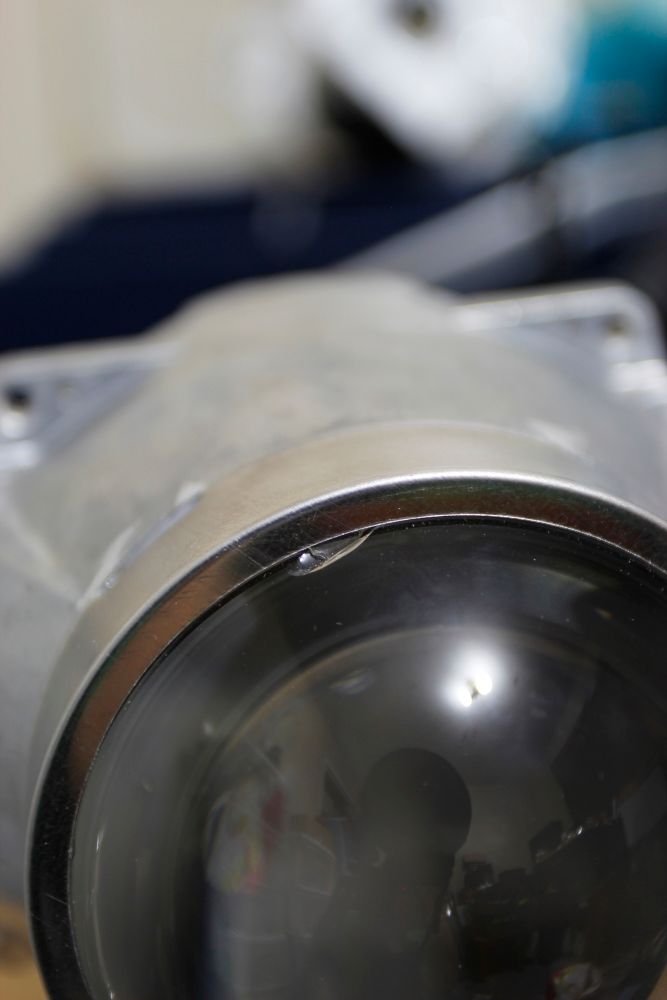

The FX-Rs were b-stock and only $50. One looked nearly flawless but the other had 2 small chips on the glass (which made no difference in beam pattern). I guess this happens a lot w/ the 3" glass during shipping.

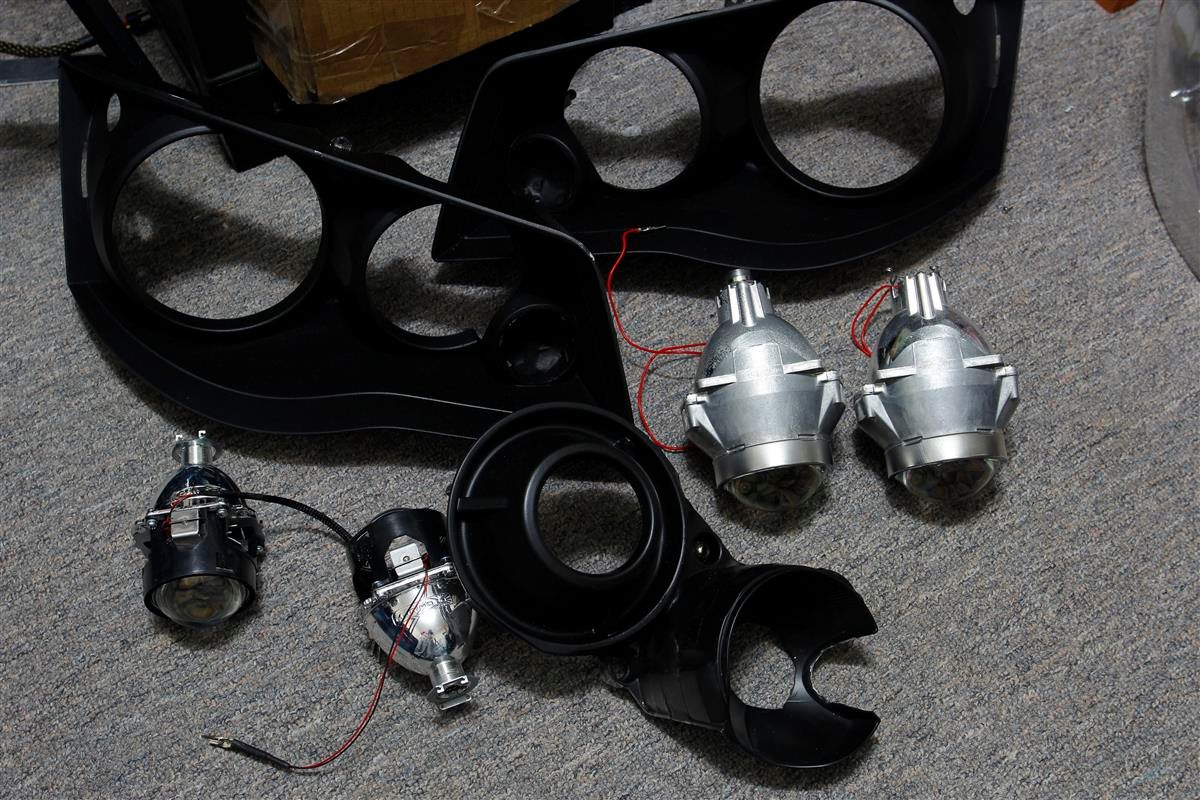

A pic of the crappy projectors in the Angel Eyes T&C HID housing I bought on eBay. Not only were the projectors rather crappy but the entire housing were. I'll get to that later.


Forgot to order the D2S adapters for my ballasts so while I waited I did the modifications needed to get them to fit.


I got the adapters on Christmas eve and over the next few weeks I worked on epoxying everything together. Now on to the aftermarket housings. They are terrible. The bowls nearly shattered after opening. The clips holding the bowls in place was impossible to pinch in order to pop the bowls out. So the bowls cracked in half when removing them :angrya:. After much JB Weld I thought I had it all good. I installed them. Then I went to aim them..... Nope, the bowls just fall off the adjustment mounts. But at least they look good.


Unfortunately I needed working lights for work so I once again pulled the bumper off. Opened the lights off. Noticed I wouldn't easily be able to repair them. Going to need A) new bowls and adjustment screws or B) a whole lot of JB weld. So I decided to do C) modify the stock housings w/ the Mini H1s for now. Then spend some time to fix the after market quad setup over the next few months.

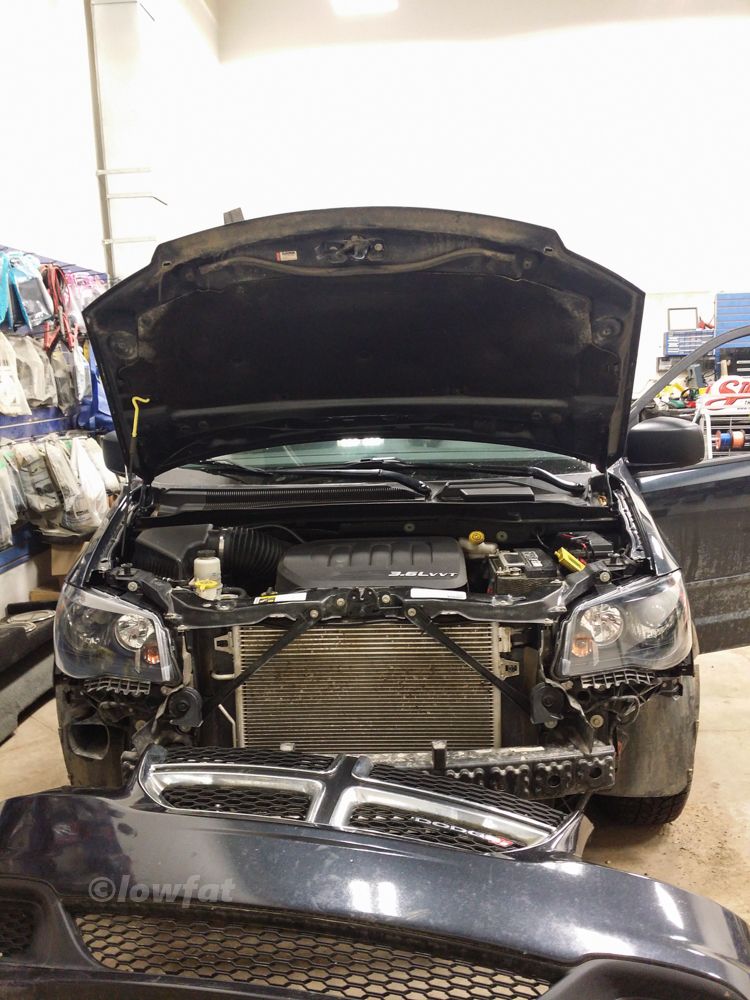

I was in a serious hurry to get them done so I don't have any pictures of the actual modifications here. But I HIGHLY suggest if you want to do this you use stock housings. Much better built. Snapped one pic tonight w/ the housings in place w/ the bumper not installed.


As I also use HIDs in the high beams. We made a relay harness from scratch to split the high beam to power the solenoids for the projectors. Added a pair of 2500mF capacitors to the relay in order in order to fix the relays from chattering, sticking open, not firing the HIDs.

I'll take some better daytime pics tomorrow hopefully w/ my real camera. However when I went for a drive tonight to test the lights I noticed some nasty shaking so it may need to go in to the shop tomorrow.

As for my impressions, even these Mini H1s are a huge improvement. Especially the high beams.

Over the next few weeks/months I'll be posting more pics/updates on the quad projectors.


·
